Michael G. Lerner


Research: Proteins

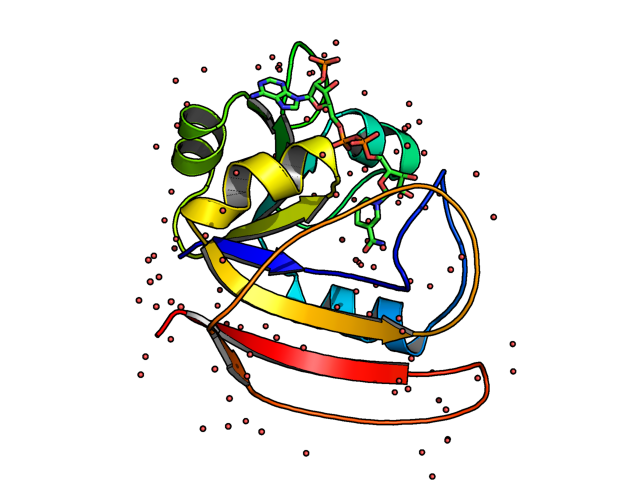

Drug design and dynamics of dihydrofolate reductase (DHFR)

Dihydrofolate reductase (DHFR) catalyzes the NADPH-dependent reduction of dihydrofolate to tetrahydrofolate. As the only source of tetrahydrofolate (an important precursor in the biosynthesis of purines, thymidylate, and several amino acids), it has been a long-standing anti-cancer target and a classic system for structure-based drug design (SBDD). Escherichia coli DHFR (ecDHFR) is a canonical system for studying enzyme structure, dynamics, and catalysis. Protein flexibility and dynamics are of utmost importance in understanding the structure and mechanism of DHFR. This has been well investigated computationally and experimentally. The conformation of the M20 loop is particularly important to the catalytic cycle, as its three major conformations (open, closed, and occluded) are known to regulate ligand affinity and turnover.

Traditional SBDD techniques focus on static structures. In 1999, Carlson and coworkers introduced the MPS (multiple protein structure) method as a way of incorporating protein flexibility into SBDD. The extreme importance of flexibility for DHFR makes the MPS method particularly appropriate. To improve the method, I developed new techniques for flooding and automatically clustering the solvent-mapping probes used in the procedure. I generated models from simulations starting with the M20 loop in both open and closed conformations. The MPS models preferentially identified high-affinity inhibitors over drug-like non-inhibitors.

Proteins are dynamic structures, and we have shown that the incorporation of these dynamics significantly enhances drug design efforts [1,2]. These techniques yield exquisite precision, and we are even able to produce models that preferentially select drugs that inhibit E. coli DHFR in comparison to human DHFR, yielding many possibilities for future anti-bacterial studies.[3]

Although they were originally thought to require direct human biochemical expertise and intervention, I have shown that the clustering methods involved in MPS drug design can be fully automated [4]. Future projects include the application of the MPS method to additional systems, integration of computational topology techniques, as well as automation of the entire MPS workflow.

  1. Refining the Multiple Protein Structure Pharmacophore Method: Consistency across Three Independent HIV-1 Protease Models
    Kristin L. Meagher, Michael G. Lerner and Heather A. Carlson
    Journal of Medicinal Chemistry 49(12):3478-3484 (2006) [pdf | online]
  2. Incorporating Dynamics in E. coli Dihydrofolate Reductase Enhances Structure-Based Drug Discovery
    Michael G. Lerner, Anna L. Bowman and Heather A. Carlson
    Journal of Chemical Information and Modeling 47(6):2358-2365 (2007) [pdf | online]
  3. Protein Flexibility and Species Specificity in Structure-Based Drug Discovery: Dihydrofolate Reductase as a Test System
    Anna L. Bowman, Michael G. Lerner and Heather A. Carlson
    Journal of the American Chemical Society 129(12):48109-1065 (2007) [pdf | online]
  4. Automated clustering of probe molecules from solvent mapping of protein surfaces: new algorithms applied to hot-spot mapping and structure-based drug design
    Michael G. Lerner, Kristin L. Meagher and Heather A. Carlson
    Journal of Computer-aided Molecular Design 22(10):727-736 (2008) [pdf | online]

Binding MOAD

Databases of bound protein-ligand complexes are useful for everything from developing scoring functions for ligand docking to de novo design of enzyme inhibitors to the examination of the basic biophysical properties of protein-ligand interaction. Binding MOAD [1] is largest collection of high-quality protein-ligand complexes available from the Protein Data Bank (PBD). It is extensively hand-curated, including binding data (Ki, Kd, IC50) from all available primary literature sources.

Some proteins are relatively easy to crystalize. Others are known systems of great interest, and still others have come in and out of vogue over time. A straightforward analysis of biophysical properties based on all available PDB structures will be heavily biased towards such systems and thus misleading. Therefore, significant effort has gone into the production of an annotated, non-redundant dataset.

Future projects include the large-scale mining of Binding MOAD to answer basic biophysical questions related to protein-ligand binding, as well as more specific questions related to computational drug design.

  1. Binding MOAD (mother of all databases)
    Leigi Hu, Mark L. Benson, Richard D. Smith, Michael G. Lerner and Heather A. Carlson
    Proteins: Structure, Function and Bioinformatics 60:333-340 (2005) [pdf | online]

Computational Topology

In collaboration with Anthony Bak at Stanford and undergraduates at Earlham College, I am applying computational topological techniques to address these same questions without the need for complex biochemical input.
